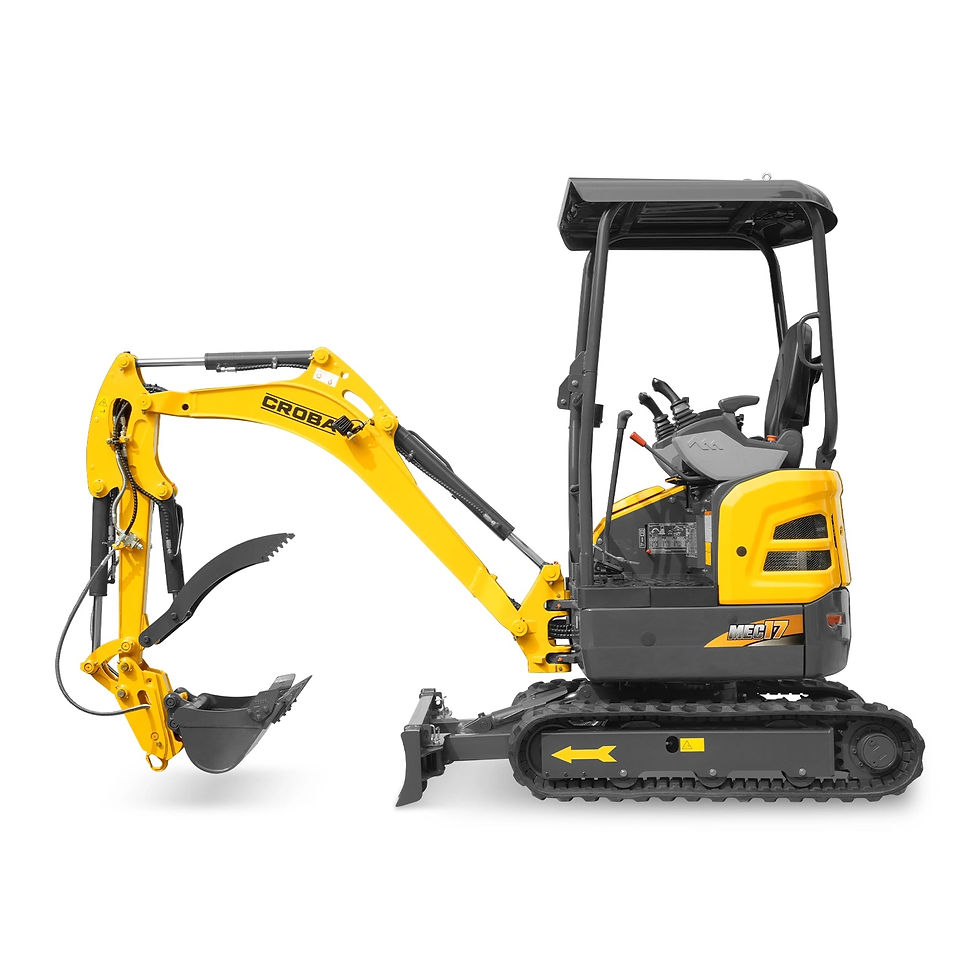

Mini Compact Excavator Kubota D902 Engine, 95” Max. Digging Depth, 4190 LBS...

ENGINE Model Kubota D902 Rated speed 2300rpm No.Of Cylinders 3 Displacement 54.8in³ Stroke 2.9in Engine Output - Net 15.8hp Bore 2.83in Warranty For Engine 2-Year or 2,000-Hour Warranty, Whichever Comes First. TRAVEL SYSTEM Track Roller Qty 6 Maximum Traction Force - Low Speed 4047lbf Type of tracks Rubber Ground Clearance 5.7in Travel Speed - High 2.67 mile/h Ground Pressure 4.2psi Travel Speed - Low 1.37 mile/h Gradeability - Maximum Maximum 30 degrees WEIGHT Operating Weight 4190lb HYDRAULIC SYSTEM Pump Flow at 2,300 rpm 17gpm Auxiliary Circuit - Secondary - Flow 2.6gpm Auxiliary Circuit - Primary - Flow 9.1gpm SWING SYSTEM Swing Motor Danfoss Swing Speed 9.5rpm Swing Motor Type SW2.5K Tail Swing Radius 25.6in DIGGING FORCE Boom Length 72in Bucket Digging Force 3597lbf Arm length 43.3in Arm Digging Force 2136lbf REFILING CAPACITIES & LUBRICATIONS Fuel Tank 5gal Hydraulic Oil Tank 3.6gal Engine Oil 1gal System Capacity 5.7gal BUCKET Bucket Capacity 1.4ft³ Bucket Width 17.7in SCOPE OF WORK Max.Digging Height 147in Min Turning Radius Of Working Device 57in Max.Dumping Height 104in Max. Lift Above Ground 11in Max.Digging Depth 95in Max. Drop Below Ground 7.5in Max.Vertical Digging Depth 81in Boom Swing - Left 65° Max Digging Radius 160in Boom Swing - Right 50° Max.digging Radius At Ground Level 157in DIMENSIONS Overall Length 133in Blade Height 11.8in Ground Contact Length （Transportation） 96in Crawler Wheel Base 48.4in Overall Width （Retracted/Expanded) 39/51in Shoe Width 9.1in Overall Height（To Top Of Cab） 94.7in Track Length 62.7in Counter Weight Ground Clearance 18in Track Gauge（Retracted/Expanded) 30/42in Ground Clearance 5.7in Track Width（Retracted/Expanded) 39/51in Blade Width（Retracted/Expanded) 39/51in SERVICE Package Method Wood Case Warranty For Machine 1 Year Packing Size 112.6x43.7x99.2 in Weight (N.W./G.W.) 4012/4580lb WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
