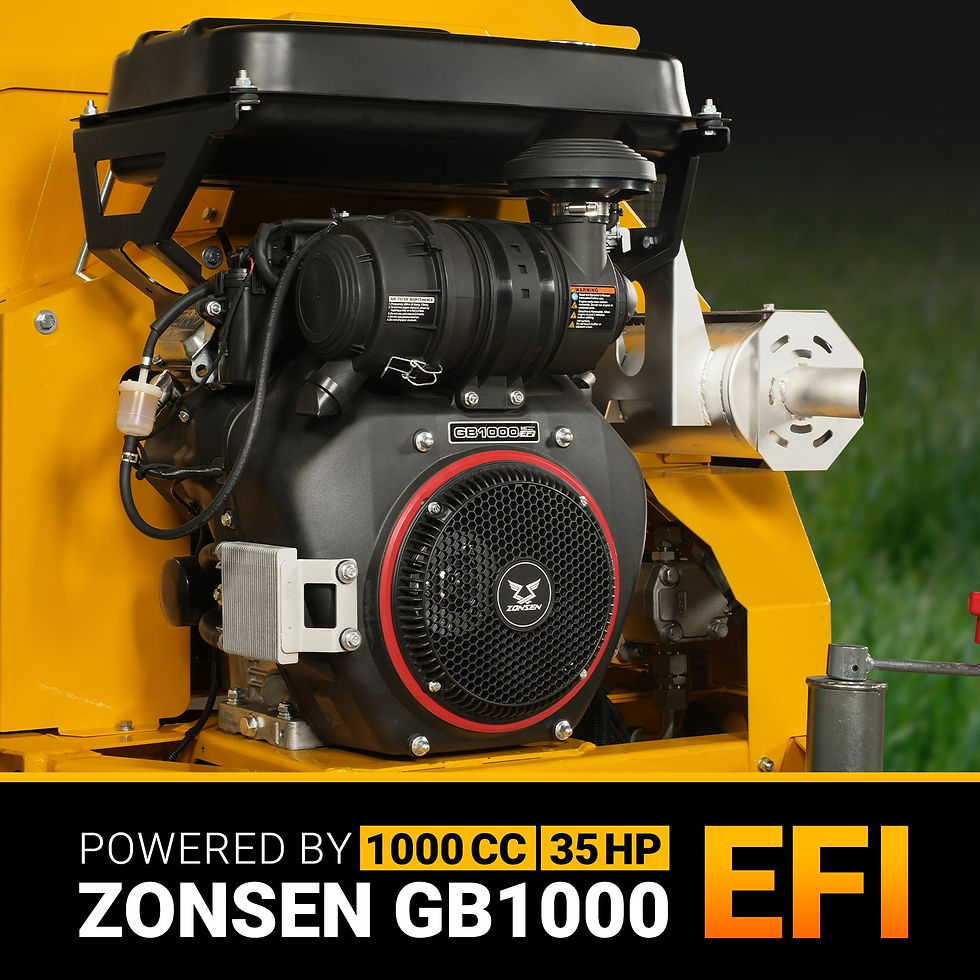

35hp 1000cc ZONSEN E-Start 8 inch Gas Powered Commerical Wood Chipper with...

Engine Parameter Engine Brand Model Zonsen GB1000EI Engine Power 35HP Torque 74Nm Fuel Tank Capacity 18L Max Fuel Consumption 2.38gal/h Fuel Type Gasoline 92# Air Cleaner Double Filtration Oil Filter Screw Mountiing Recommended Oil SAE 10W-30 Oil Volume with Filter 2.5L Maximum Continuous Working Angle 20° Cooling Medium Forced Cooling Alternator 25A/300W Clutch Type Manual Clutch Engine Shaft Diameter 1.125 in Tensioner Spring Automatic Tensioning Belt 2SB1505LE General Dimensions And Weight Overall Length-Feed Table Up 135 in Overall Length-Feed Table Down 155 in Overall Width 55 in Overall Height-Discharge Chute Up 79 in Overall Height-Discharge Chute Down 92 in Overall Weight 1874 lbs Tongue Weight 198 lbs Feed System Feed Roller Orientation Horizontal Feed Roller Nos. 1 Feed Roller Clamp Load 344 lbs Knife Nos. 4 Number Of Feed Roller Motors 1 Feed Roller Clamping Mechanism Type Spring + Feeding Roller Weight Feed Roller Dimension φ12*11 in Minimum Distance From Feed Roller To Blade Housing 5 in Weight Of Feed Roller Assembly 123 lbs Feed Speed 54ft/min Infeed Table Height 22 in Infeed Table Length 24 in Infeed Table Width 41 in Infeed Throat Size 12*8 in Distance From Feed Roller To End Of Feed Table 61 in Distance From Feed Table To Ground 30 in Safety System Bottom Feed Stop Bar Function Feed Roller Stopped - Reset Bottom Feed Stop Bar Standard Bottom Feed Stop Bar Diameter 1.2 in Bottom Feed Stop Bar Material Thickness 0.07 in Stop Bar Resetting Method Manual Reset Three-Position Feed Control Bar Standard Control Bar Diameter 1 in Control Bar Material Thickness 0.07 in Control Bar Position Function Forward/Stop/Reverse Red Emergency Stop Button Stop The Engine Red Emergency Stop Button Reset Method Manual Reset Blade Housing Parameter Chipping Capacity 8 in Blade Housing Width 7 in Cutting Disc Size 30*0.7 in Cutting Disc Rotating Speed 1800 Weight With Shaft 225 lbs Safety Lock - Number Of Positions 1 Blade Size 4*1*0.5 in Blade Cutting Edge Nos. 2 Blade Bolt Nos. 3 Vertical Anvil Size 3.5*7.8*0.5 in Vertical Anvil Cutting Edge Nos. 2 Horizontal Anvil Size 3.7*11.6*0.4 in Horizontal Anvil Cutting Edge Nos. 2 Blade Material A8 Steel Anvil Material Cr12 Blade Holder Replaceable No Fan Blades Nos. 4 Fan Blade Fixation Method Bolt Fixing Fan Blade Air Flow 3249CFM Disc Bearing Nos. 2 Bearing Hole Diameter 2 in Bearing Type Spherical Bearing Bearing Brand SKF Dynamic Capacity 23.2KN Static Capacity 27KN Tensioner Automatic Tensioning Belt Type Combined Belt Discharge System Chute Height 97 in Flange Thickness 0.2 in Side Wall Thickness 0.07 in Chute Rotation Angle 360° Rotation Type Manual Rotatation Lock Included Rotational Lock Type Tighten The Dual Handle Bolts Hydraulic System Tank Capacity 7.4 gal Recommended Oil Type hm46 System Type Open Center Filtration Method Return Oil Filtration - 10um Pump flow at the maximum RPM 4.2 gal Maximum Pressure 2102psi Electric Control Parameter System Voltage 12V Battery 12V 48AH Display Screen Size 4.3 in. Controller Function Timer, Automatic Control, Status Display, Speed Display, Etc. Shutdown System Engine Trailer Lights Vehicle Power Supply Others Tow Ball Size 2" Coupler Hitch / 2" Ball Coupler Hook Type Ball Coupler Axle Load-Bearing Capacity 2756 lbs Torsion Shaft Mud Guard Bolt Fixing Torque Shaft Type Solid Torque Shaft Tyre φ594x165R13 WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
