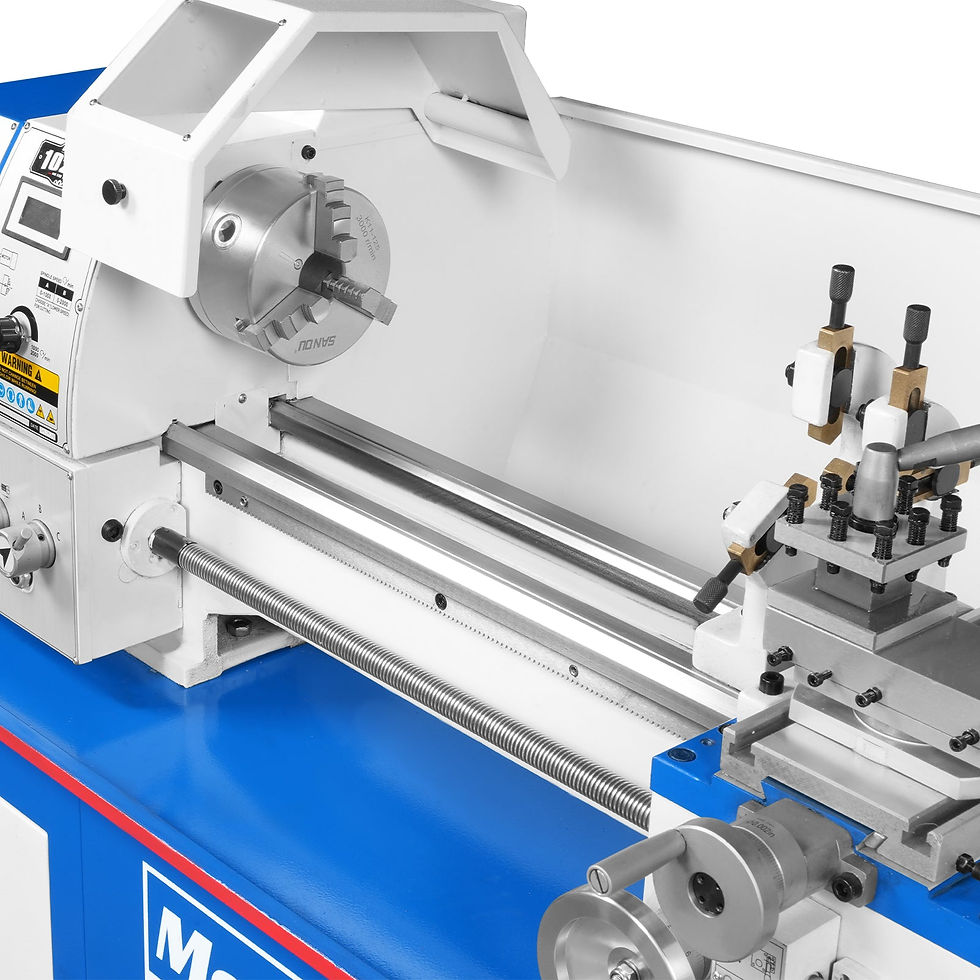

10'' x 22'' Industrial Metal Lathe Machine High Precision Benchtop 1.5HP...

Specification 1022V Motor 1.5 HP, 110V, single-phase, 10A Swing Over Bed 9-7/8" (250 mm) Swing Over Cross Slide 5-1/2" (140 mm) Swing Over Saddle 5" (127 mm) Distance Between Centers 21-5/8" (550 mm) Bed Width 5-3/8" (135mm) Spindle Bore 1-1/2" (38 mm) Spindle Mount Intrinsic back plate Spindle Type One-piece Spindle Spindle Taper MT#5 Tailstock Taper MT#2 Tailstock Quill Travel 3" (75 mm) Cross Slide Travel 5" (127 mm) Compound Slide Travel 3" (75 mm) Carriage Travel 19-5/8"(500mm) Spindle Speeds 0–2000 RPM Number of Speed Ranges Variable Longitudinal Feeds 0.0025 – 0.014 in./rev. Transverse Feed Rate 0.0014 – 0.004 in./rev. Leadscrew Size & Pitch 20mm(8TPI) Threading Capacity - Inch 8–80 TPI(37KINDS) Threading Capacity - Metric 0.35 – 3.0 mm(21kinds) Maximum Tool Bit Size 15/32''(12mm) Thread Dial Indicator YES Coolant System OPTIONAL Overall Dimensions 44.0" × 25.0" × 19.0" (1220 × 635 × 480 mm) Approximate Shipping Weight 308/352 lbs (140/160 kg)
